• Wheels, 4 - 18" x 8" (45.7 cm x 20.3 cm) chrome-clad aluminum (spare wheel will not cosmetically match the other 4 wheels) (Upgradeable to (N87) 4 - 18" x 8" (45.7 cm x 20.3 cm) aluminum wheels or (S80) 4 - 20" x 8.5" (50.8 cm x 21.6 cm) chrome-clad aluminum wheels. Included with (PDV) Chrome Essentials Package. Not available with (Z71) Off-Road Suspension Package, (WEA) Z71 Enhanced Package or (NHT) Max Trailering Pack.)
• Tires, P265/65R18 all-season, blackwall includes all-season 17" spare (Not available with (Z71) Off-Road suspension package or (WEA) Z71 Enhanced Package.)
• Wheel, 17" (43.2 cm) steel spare (spare wheel will not cosmetically match the other 4 wheels)
• Spare tire lock keyed cylinder lock that utilizes same key as ignition and door
• Tire carrier, outside spare, winch-type mounted under frame at rear
• Bumper, front body-colored (Includes body-color bumper end caps.)
• Bumper, rear chrome, step-style with pad
• Air dam, Black
• Moldings, bodyside, body-colored
• Grille, body-colored with unique chrome insert
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Fog lamps, front, halogen
• Lamps, dual cargo area lamps
• Mirrors, outside heated power-adjustable, power-folding and driver-side auto-dimming with integrated turn signal indicators (Mirrors are body-colored and include curb-tilt feature. Upgradeable to (DPN) outside vertical camper mirrors.)
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass) (With Regular Cab models, includes rear window. With Extended Cab models, includes rear and rear quarter windows. With Crew Cab models or (C49) rear-window defogger, includes light-tinted rear window.)
• Wipers, front intermittent wet-arm with pulse washers
• Door handles, color-keyed
• Pickup box, Fleetside

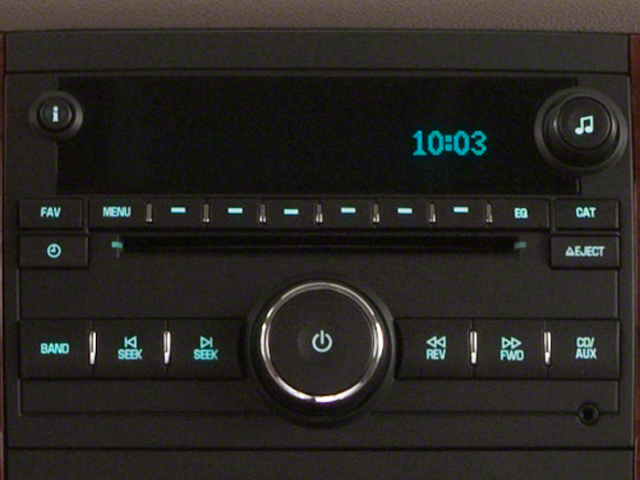

• Audio system, AM/FM stereo with CD player and MP3 playback, USB port auxiliary input jack, seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), automatic volume, TheftLock and 36 cross-band presets
• Audio system feature, Bose premium speaker system with sub-woofer in center console
• Steering wheel controls, mounted audio controls
• SiriusXM Satellite Radio is standard on nearly all 2012 GM models. Enjoy a 3-month trial to the 'XM Select' package, with over 170 channels including commercial-free music, all your favorite sports, exclusive talk and entertainment. And now add premium channels to your trial at no-cost. Welcome to the world of satellite radio. (Not available with (UYS) AM/FM stereo with MP3 compatible CD/DVD player and navigation. Requires a subscription sold separately by SiriusXM after the trial period. If you decide to continue your service at the end of your subscription, service will automatically renew and bill, at the rates in effect at the time of renewal, until you call SiriusXM at 1-866-635-2349 to cancel. See our Customer Agreement for complete terms at www.siriusxm.com. Available only to those at least 18 and older in the 48 contiguous USA and D.C.)
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system

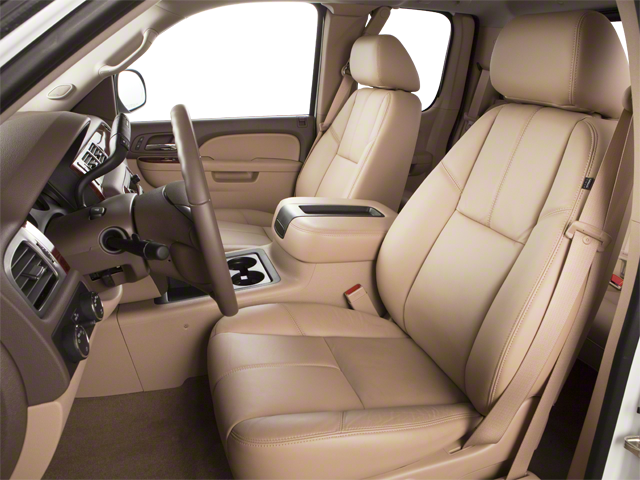

• Seats, front bucket includes 10-way power driver and front passenger seat adjusters including 2-way power lumbar control, heated seat cushions and seatbacks, 2-position driver memory, adjustable outboard head restraints, floor console and storage pockets
• Seat trim, Leather-appointed
• Seat adjuster, driver 10-way power
• Seat adjuster, front passenger 10-way power

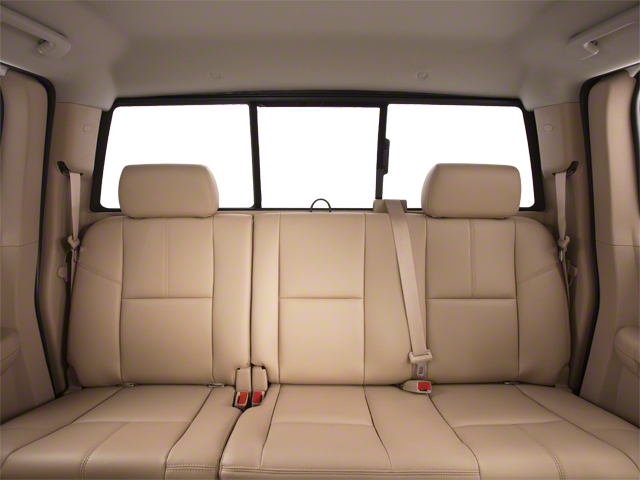

• Seat, rear 60/40 folding bench (folds up), 3-passenger, folding (includes child seat top tether anchor)

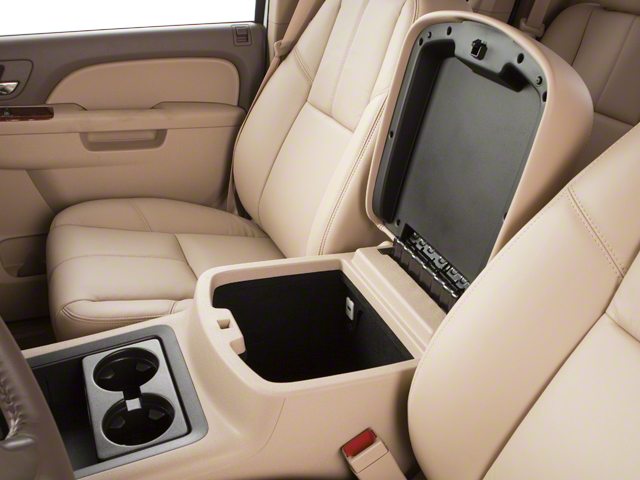

• Console, floor with storage compartment, 2 auxiliary power outlets and dual cup holders
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Extended and Crew Cab models also include rear floor mats)

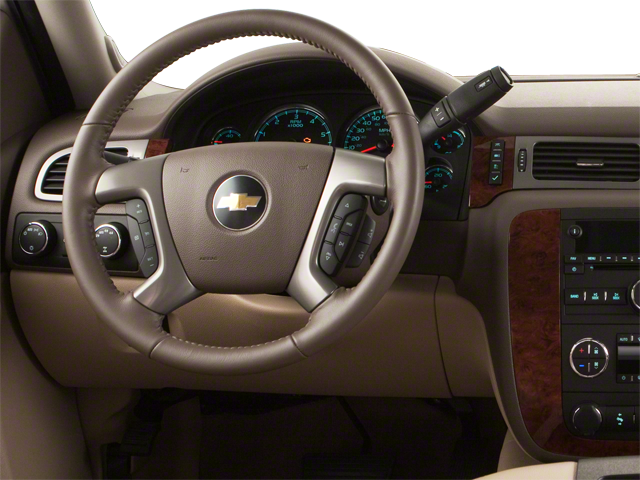

• Steering wheel, leather-wrapped with theft-deterrent locking feature
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on

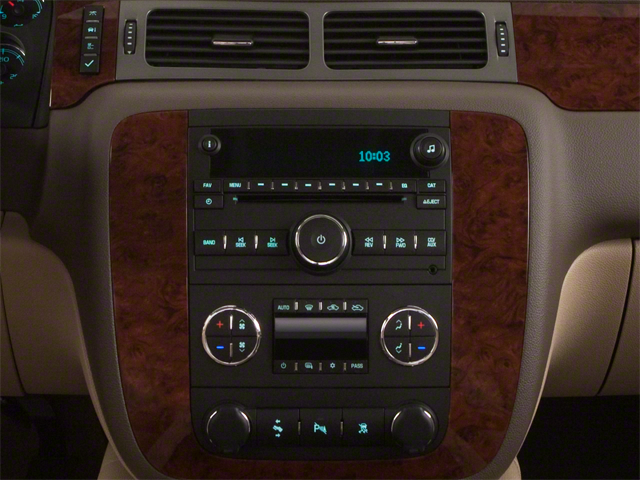

• Air conditioning, dual-zone automatic climate control with individual climate settings for driver and right-front passenger

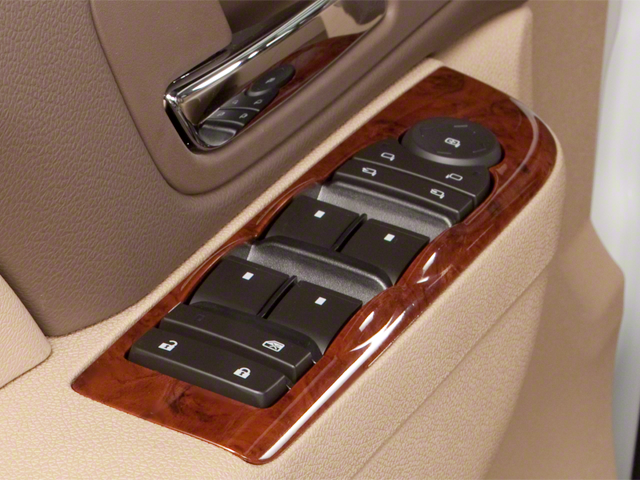

• Windows, power with driver Express-Down (Includes front passenger Express-down.)
• Windows, power, rear access door (Requires Extended Cab Models.)
• Door locks, power includes Remote Keyless Entry
• Remote vehicle starter system includes Remote Keyless Entry with 2 transmitters, panic button and content theft alarm (Remote Keyless Entry does not lock/unlock tailgate.)
• Cruise control, electronic with set and resume speed, located on steering wheel
• Defogger, rear-window electric (Not available with (A48) power sliding rear window.)
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models.)
• Power outlets, 2 auxiliary instrument panel-mounted with covers, 12-volt
• Mirror, inside rearview auto-dimming
• Visors, driver and front passenger, sliding with clip and illuminated vanity mirror on driver and passenger-side, Opal Gray-colored
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab Models.)
• Coat hooks, rear driver and passenger side
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Daytime Running Lamps, with automatic exterior lamp control
• Air bags, frontal, driver and right-front passenger with Passenger Sensing System (Always use safety belts and the correct child restraints for your child's age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the Owner's Manual and child safety seat instructions for more safety information.)
• Air bags, head curtain side-impact, front outboard seating positions with rollover sensor (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat outboard occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. See the Owner's Manual and child safety seat instructions for more safety information.)
• Air bags, seat-mounted side-impact, driver and right-front passenger for thorax and pelvic protection (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat outboard occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. See the Owner's Manual and child safety seat instructions for more safety information.)
• OnStar, 6 months of Directions and Connections plan Includes Automatic Crash Response, Emergency Services, Crisis Assist, Stolen Vehicle Assistance including Stolen Vehicle Slowdown and Remote Ignition Block, Remote Door Unlock (requires power locks), Turn-by-Turn Navigation with Destination Download (requires navigation radio) and OnStar eNav (where available), OnStar Vehicle Diagnostics, Roadside Assistance, Remote Horn and Lights, and Hands Free Calling. (Visit onstar.com for details and system limitations.)
• Automatic Crash Response
• Stolen Vehicle Assistance
• OnStar Turn-by-Turn Navigation
• Tire Pressure Monitor System (does not apply to spare tire)

WHEELS, 4 - 18" X 8" (45.7 CM X 20.3 CM) ALUMINUM

• (spare wheel will not cosmetically match the other 4 wheels)

SEATS, FRONT BUCKET

• includes 10-way power driver and front passenger seat adjusters including 2-way power lumbar control
• heated seat cushions and seatbacks
• 2-position driver memory
• adjustable outboard head restraints
• floor console and storage pockets (STD)

GVWR, 7000 LBS. (3175 KG)

• (STD)

REAR PARKING ASSIST, ULTRASONIC

• with audible warning

TRANSMISSION, 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode (STD)

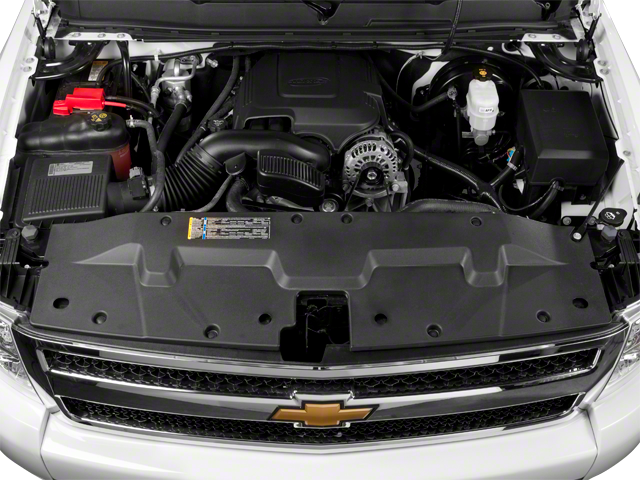

ENGINE, VORTEC 6.2L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE, FLEXFUEL

• capable of running on unleaded or up to 85% ethanol (403 hp [300.5 kW] @ 5700 rpm
• 417 lb-ft of torque [565.4 N-m] @ 4300 rpm)

LTZ PLUS PACKAGE

• includes (UG1) Universal Home Remote
• (A60) locking tailgate
• (PPA) EZ-Lift tailgate
• (JF4) power-adjustable pedals
• (UD7) Rear Parking Assist and (S41) Rear wheelhouse liner
• LPO

SUSPENSION PACKAGE, OFF-ROAD

• includes 1.81" (46 mm) shocks
• off-road jounce bumpers
• 36mm front stabilizer bar
• (NZZ) Skid Plate Package
• (V76) recovery hooks
• (K47) air cleaner and Z71 decals on rear quarters

SKID PLATE PACKAGE

• frame-mounted shields
• includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case

LTZ PREFERRED EQUIPMENT GROUP

• includes standard equipment

TIRES, P265/65R18 ON-/OFF-ROAD, WHITE OUTLINED-LETTER

• includes all-season 17" spare

AUDIO SYSTEM, AM/FM STEREO WITH CD PLAYER AND MP3 PLAYBACK, USB PORT

• auxiliary input jack
• seek-and-scan
• digital clock
• auto-tone control
• Radio Data System (RDS)
• automatic volume
• TheftLock and 36 cross-band presets (STD)

• LTZ Equipment Group
• Heavy-Duty Rear Automatic Locking Differential
• 18" x 8" Chrome-Clad Aluminum Wheels
• 18" x 8" Aluminum Wheels
• Front Full-Feature Bucket Seats
• Leather-Appointed Front Seat Trim
• 10-Way Power Driver's Seat Adjuster
• LTZ Plus Package
• AM/FM Stereo w/CD Player & MP3 Playback
• SIRIUSXM Satellite Radio
• Bose Premium Audio Speaker System
• Bluetooth® For Phone
• Electric Rear-Window Defogger
• Power Door Locks w/Remote Keyless Entry
• Color-Keyed Carpeting w/Rubberized Vinyl Floormats
• Inside Auto-Dimming Rear-View Mirror
• Front Halogen Fog Lamps
• Solar-Ray Deep-Tinted Glass
• Z71 Chrome Decal (LPO)
• Locking Tailgate
• Skid Plate Package
• Heavy-Duty Handling/Trailering Suspension Package
• Off-Road Suspension Package
• Heavy-Duty Trailering Package
• Heavy Duty Cooling Package
• Electronic Autotrac Transfer Case
• Remote Keyless Entry w/2 Transmitters
• Power Windows w/Driver & Front Passenger Express-Down
• Rear Access Door Power Windows
• 10-Way Power Front Passenger Seat Adjuster
• Remote Vehicle Starter System
• Body-Colored Bodyside Moldings
• Dual-Zone Automatic Climate Control
• Floor Console w/Dual Cup Holders
• Driver & Front Passenger Illuminated Visor Mirrors
• Body-Colored Power Heated Outside Rear-View Mirrors
• Color-Keyed Door Handles
• 4-Wheel Disc Antilock Brakes
• Power-Adjustable Pedals For Accelerator & Brake
• Heavy-Duty Air-to-Oil External Engine Oil Cooler
• Heavy-Duty Auxiliary External Transmission Oil Cooler
• Leather-Wrapped Steering Wheel
• EZ-Lift Tailgate
• Rear Wheelhouse Liner
• Body-Colored Grille w/Unique Chrome Insert
• Ultrasonic Rear Parking Assist w/Audible Warning
• Universal Home Remote
• Steering Wheel Mounted Audio Controls
• Air Conditioning
• Emergency communication system: OnStar Directions & Connections
• AM/FM radio: SiriusXM
• Compass
• 7 Speakers
• Auto-dimming Rear-View mirror
• Front beverage holders
• Variably intermittent wipers
• Turn signal indicator mirrors
• Trip computer
• Traction control
• Tilt steering wheel
• Steering wheel mounted audio controls
• Split folding rear seat
• Speed control
• Security system
• Remote keyless entry
• Rear window defroster
• Rear step bumper
• Rear reading lights
• Radio data system
• Power windows
• Power steering
• Power passenger seat
• Power driver seat
• Power door mirrors
• Passenger vanity mirror
• Passenger door bin
• Panic alarm
• Overhead console
• Overhead airbag
• Outside temperature display
• Occupant sensing airbag
• Memory seat
• Low tire pressure warning
• Illuminated entry
• Heated front seats
• Heated door mirrors
• Fully automatic headlights
• Front wheel independent suspension
• Front reading lights
• Front fog lights
• Front dual zone A/C
• Front anti-roll bar
• Dual front side impact airbags
• Dual front impact airbags
• Driver vanity mirror
• Driver door bin
• Delay-off headlights
• CD player
• Bumpers: body-color
• Bodyside moldings
• Automatic temperature control
• Auto-dimming door mirrors
• Alloy wheels
• ABS brakes
• Voltmeter
• Tachometer
• Front Center Armrest
• Front Bucket Seats
• Electronic Stability Control

• Mileage
• Fuel Economy Est-Combined (MPG): 14
• Fuel Economy Est-Combined (MPG): 17
• EPA Fuel Economy Est - City (MPG): 12
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 18
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3950
• Gross Axle Wt Rating - Rear (lbs): 3950
• Curb Weight - Front (lbs): 3217
• Curb Weight - Rear (lbs): 2057
• Gross Vehicle Weight Rating Cap (lbs): 7000
• Gross Combined Wt Rating (lbs): - TBD -
• Gross Combined Wt Rating (lbs): 11000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6400
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6800
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 960
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1020
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9100
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2275
• Maximum Trailering Capacity (lbs): 10400
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-stage multi-leaf
• Spring Capacity - Front (lbs): 3950
• Spring Capacity - Rear (lbs): 3950
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3950
• Axle Capacity - Rear (lbs): 3950
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Front: 3.08
• Axle Ratio (:1) - Rear: 3.42
• Axle Ratio (:1) - Rear: 3.08
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.42
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.99 x 1.18
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 11.61 x 2.36
• Tires
• Front Tire Order Code: QXQ
• Front Tire Order Code: QMG
• Rear Tire Order Code: QXQ
• Rear Tire Order Code: QMG
• Front Tire Size: P265/65R18
• Front Tire Size: P265/65R18
• Rear Tire Size: P265/65R18
• Rear Tire Size: P265/65R18
• Spare Tire Size: - TBD -
• Front Tire Capacity (lbs): 2244
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): 2244
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 x 8.0
• Rear Wheel Size (in): 18 x 8.0
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 16.73
• Steering Ratio (:1), At Lock: 3
• Turning Diameter - Curb to Curb (ft): 46.9
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: Driver Side
• Exterior Dimensions
• Wheelbase (in): 143.5
• Length, Overall w/o rear bumper (in): 230.2
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 73.7
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): 47.2
• Front Bumper to Back of Cab (in): 141.4
• Cab to Axle (in): 41.5
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 33.4
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.0
• Ground Clearance, Rear (in): 11.8
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.7
• Cargo Box Width @ Top, Rear (in): 61.5
• Cargo Box Width @ Floor (in): 62.4
• Cargo Box Width @ Wheelhousings (in): 50.6
• Cargo Box (Area) Height (in): 21.0
• Tailgate Width (in): 61.5
• Cargo Volume (ft³): 60.7
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 41.2
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 62.5
• Second Head Room (in): 39.2
• Second Leg Room (in): 34.3
• Second Shoulder Room (in): 65.3
• Second Hip Room (in): 61.9
• Summary
• Vehicle Name: Chevrolet Silverado 1500
• Body Style: Ext Cab 6.5' Wideside
• Body Code: E63
• Emissions
• EPA Greenhouse Gas Score: 2
• EPA Greenhouse Gas Score: 3
• Tons/yr of CO2 Emissions @ 15K mi/year: 13.3
• Tons/yr of CO2 Emissions @ 15K mi/year: 11.0
